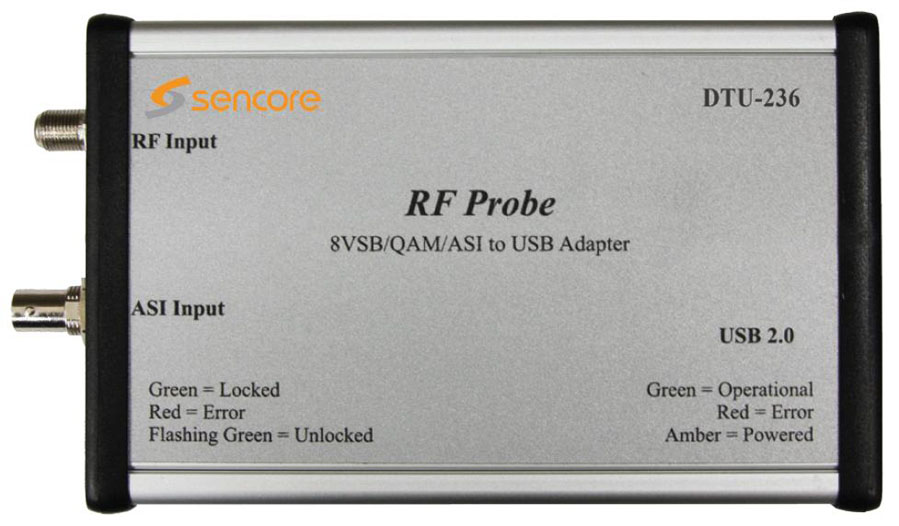

Providing real time analysis and monitoring of terrestrial signals including 8-VSB, QAM A/B/C and NTSC RF channels. Install the included RFXpert software and it will show full RF analysis, logging and transport stream recording, spectral displays, and will also give you the ability to turn off and on 8-VSB tap equalization for easy to read viewing of uncorrected signals being received. With the DTU-236XS you can get a true demodulated digital reading for MER, Pre-BER, Post BER and EVM, and it will also provide you a proof positive method of signal documentation or drop point comparisons with programmable, user defined logging and auto inspection capabilities.
The Sencore DTU-236XS includes the powerful StreamXpert software which gives you a cost effective and user friendly MPEG2/H.264 transport stream analyzer. Analyze your signals from either the ASI or RF inputs and validate against industry standard ETR101-290 templates. Capture your transport streams in the field and analyze them for later use with the StreamXpert software.
