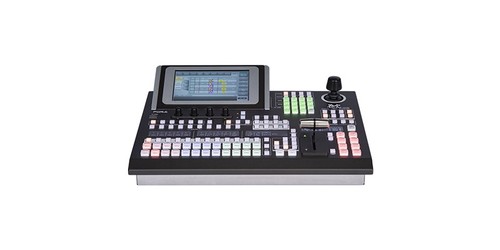

FOR-A HVS-1200-Type A
Hanabi 12G UHD 3G Video Switcher

Part #: HVS-1200-Type A
Your Price: $49,500.00
▲ ▼

Sign up for Dealer Pricing
Request Quote
Top HVS-1200-Type A Specifications
  • Supports four lines (eight channels) of balanced or unbalanced audio input and output
  • For noiseless transitions, audio is muted when video is switched
  • A macro function enables operators to store and register a series of operations and then perform complicated operations with one push of a button
  • Up to 100 registers of control panel configurations can be stored as events
  • One (in 4K(UHD) mode) and four (in HD mode) sill/clip stores are equipped


  • Product Details
  • Specifications
  • Downloads (2)

New 12G-SDI 1M/E switcher on the scene

The new FOR-A Hanabi HVS-1200 Type A builds on the features of the HANABI HVS-100/110 and HVS-490 video switchers and adds 12G-SDI support as standard. One or two M/E switching (in 4K(UHD) and HD mode, respectively) is just the start. Enjoy two or six M/E performance in these modes thanks to FOR-A’s MELite™ technology. The compact, 3U form factor is exceedingly portable, making the HVS-1200 the perfect choice for mobile production or events.

This System Includes:

  • HVS-1200MU
  • HVS-1200PSM
  • HVS-492OU
  • HVS-49PSO

Manufacturer Notes:

"Hanabi" 12G-2 M/E Switcher (1 Full + 1 MElite) or 3G/HD-6 M/E (2 Full + 4 MELite) with HVS-492OU 18-Button control panel, 10 12G-SDI (or 40 HD/SD-SDI) inputs, 10 12G-SDI outputs (or 10 HD/SD-SDI) including 2 HDMI v2.0b, Frame Synchronizer on each input, In 4K-UHD-1 Full M/E-w/2 Keyers and 1 MELite w/1 Flexakeyer (w/1 chroma keyer/2x2.5D DVE), In HD-2 Full M/E w/each 4 keyers and 4 MELite w/ total 4Flexakeyer (w/3 chroma keyer/8x2.5D DVE), In 4K-UHD-1 still/clip store, In HD-4 still/clip store, Dual 16 channel built In Multi Viewer, Macro Function, Web based interface, 6 Aux buses. Integrated ONStage(tm) capabilities. Midas touch system GUI capability included.

Standard 12G-SDI support

10 12G-SDI inputs come standard on this compact unit. Use as a switcher in HD mode with 40 inputs and 2M/Es. Can be used mainly for HD switching while switching to 4K(UHD) as needed. Enjoy convenient operation in HD mode and smoother migration to a 4K(UHD) environment.

Ten standard inputs in 4K(UHD) mode

In 4K(UHD) mode, the switcher features 10 inputs and 10 outputs, including two outputs for HDMI 2.0 Level B. Mixed inputs of 12G-SDI and quad link 3G-SDI are supported. Two 3G-SDI I/Os for 29.97p/25p/24p/23.98p. In HD mode, 40 inputs and ten outputs are supported, including two outputs for HDMI 2.0 Level B.

One (in 4K(UHD) mode) and four (in HD mode) sill/clip stores are equipped
One color corrector (in 4K(UHD) mode) and four color correctors (in HD mode) are available per M/E
2 channels of multi viewer or 4 channels of DSK
Built-in Web server enables settings from a PC or tablet device

Downloads:

  • FOR-A HVS-1200-Type A Specifications (PDF)
  • FOR-A HVS-1200-Type A Manual (PDF)
