IPTV Encoder

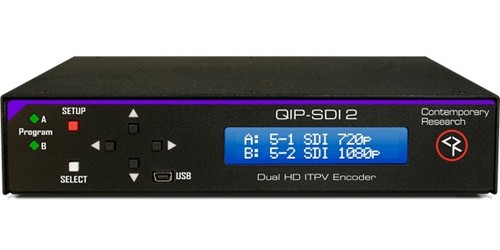

The dual-program QIP-SDI 2, with two SDI inputs, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 3G 1080p, shapes digital signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Encoding as MPEG2 or H.264, the QMOD-SDI 2 can output the content as two SPST Multicast or Unicast IPTV streams. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, Component, and NTSC video sources.
Sources
- Two HD-SDI inputs, 3G Level A 1080p, 1080psf24 and 1080i/720p 59.94/60 Hz HD-SDI, and SD-SDI 480i widescreen/4:3 video; also accepts embedded 608/708 captioning and AES and AC-3 audio
- Two Composite/CC video inputs for encoding, captioning, or EAS use
- Two analog Stereo and two SPDIF coax audio inputs
Encoding
- Creates up to two high-definition SPST Unicast or IPTV streams, encoded as H.264 or MPEG2
- Converts stereo and PCM to stereo AC3, AAC or MP12, passes through AC-3
- Can create SAP dual-language audio for each program
- Accepts 608/708 embedded captioning or Line 21 captioning from composite video inputs
- Dual hardware scalers accept up to1080p 3G video, including 60/30 Hz, and PAL formats, and can deliver programs at a scaled or native resolution
- Dual-program operation is standard
Operation
- Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
- Onboard Web page for setup and monitoring, also accessible from front-panel USB port - an Ethernet connection is not required
- Updates firmware via USB and Ethernet
- Fan cooled, with adjustable speed
- Saves power and rack space using efficient design
- Includes compact switching power supply
- Mounts in included RKU
- Meets RoHS safety and California energy standards
