SIIG KT-H4N011-S1
HDMI 4-Display Native Extender Digital Signage Kit

Part #: KT-H4N011-S1

We're sorry, this product is discontinued

Please call us at (888) 955-5255 or email us and we can help you find the right alternative!

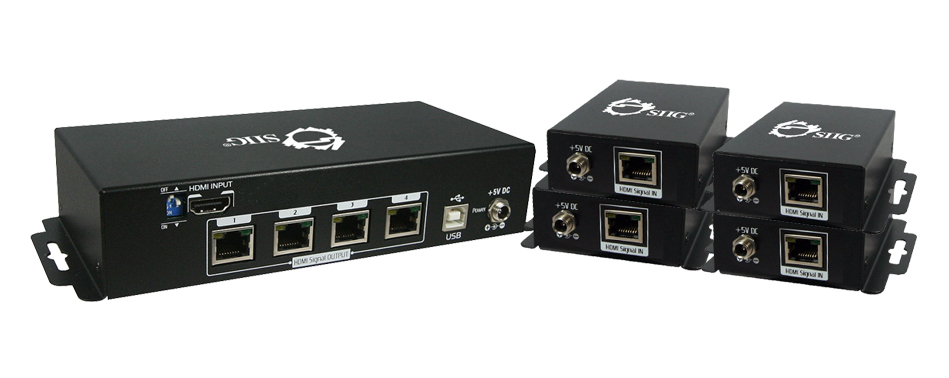

Created for digital signage environments requiring multiple displays where the audience is decentralized in multiple area locations, the SIIG KT-H4N011-S1 HDMI 4-Display native extender kit can duplicate and extend your high-definition digital video over affordable CAT5/6 to 4 HDMI-enabled display units. The unit features one HDMI 1x4 over CAT5e Distribution Amplifier and four HDMI Over CAT5e Receiver units so you can reliably extend the audio and video transmission from an HDMI source to multiple HDMI displays to enjoy high definition audio/video entertainment in seperate locations.

Input: 1x HDMI (female, 19-pin)

Output: 4x RJ-45

Includes: Power adapter (5V), Screw kit, Quick installation guide

HDMI over CAT5e Receiver:

HDMI 1.2a compliant and HDCP compatible

Regenerates HDMI signal

Receives signals from a transmitter or transceiver, then connects to an HDMI display

Data rate: 1.65Gb/s (max)

Input: 1x RJ45

Output: 1x HDMI (19-pin, Male)

Supports distances up to 60m/200ft @ 720p/1080i or 40m/130ft @ 1080p with CAT5e cable

Includes: Power adapter (5V DC), Quick installation guide

Downloads:

SIIG KT-H4N011-S1 HDMI 4-Display Native Extender Digital Signage Kit
