Kramer VP-731
9-input Scaler / Switcher - HQV Processing. Ethernet Control

Part #: VP-731
 We're sorry, this product is discontinued

Please call us at (888) 955-5255 or email us and we can help you find the right alternative!



  • Product Details
  • Specifications
  • Downloads (1)

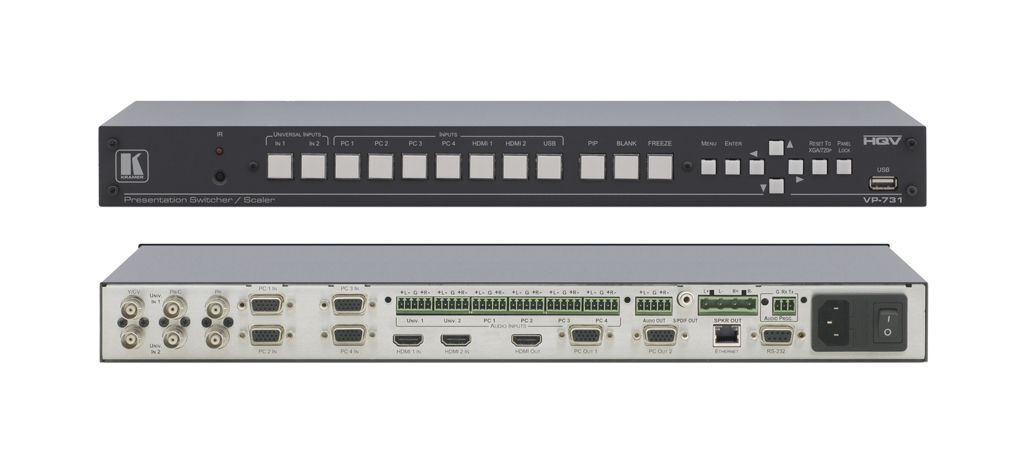

The Kramer VP 731 is a 9 input scaler/switcher for analog video, digital video, balanced stereo and S/PDIF audio signals. It up or down scales composite, s Video (Y/C), component video (YUV), HDMI, computer graphics video and JPEG files to a selectable computer graphics video or HDTV output resolution on one HDMI and two 15 pin HD outputs. It includes a power amplifier to drive loudspeakers. The unit provides glitch free switching between sources through FTB (fade thru black) switching technology. The VP 731 is the same as the VP 730 with the addition of Ethernet control. Best suited for projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging or any application where high-quality conversion and switching of multiple and different video signals to graphical data signals is required for projection purposes.

1 USB connector
For each universal input there is a corresponding (unbalanced) audio stereo input and digital S/PDIF input on RCA connectors. For each UXGA input there is a corresponding (unbalanced) audio stereo input on a 3.5mm mini jack connector
OUTPUTS: 1 HDMI connector
2 x PC (computer graphics) on 15 pin HD connectors
1 balanced stereo audio on a 5 pin terminal block
1 digital S/PDIF output on an RCA connector
COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP
CONTROL: Front panel buttons/OSD, IR remote control, RS 232 on a 9 pin D sub connector, Ethernet
ADDITIONAL CONTROLS: Picture In Picture: Video in Graphics, Picture and Picture or Split Screen (two images side by side), freeze, zoom, different selectable vertical refresh rates, video and audio ProcAmp control, output image scaling and aspect ratio change, EDID capture, text overlay, slide show
DIMENSIONS: 19" x 7" x 1U W, D, H, rack mountable
WEIGHT: 6.6lbs approx
Warranty: 7 Years

Downloads:

  • Kramer VP-731 Specifications (PDF)
