232-ATSC+1 Product Description:
The Contemporary Research 232-ATSC+1 HDTV Tuner now allows the integrator to fit two units side by side in one space saving valuable rack space. Not only is it low profile and energy efficient saving you money, it can also automatically filter out encrypted channels while scanning. A universal TV tuner, the 232-ATSC+1 can receive both digital and analog channels, in ATSC, NTSC, and clear QAM formats
Set up is simple with its large front panel display and easy to use navigation buttons. You can now leave the unit in the rack and update your firmware from the front panel USB port. Control up to 9 tuners via RS-232 or unlimited via IP, the 232-ATSC+1 is user friendly with high performance.
232-ATSC+1 Product Features:

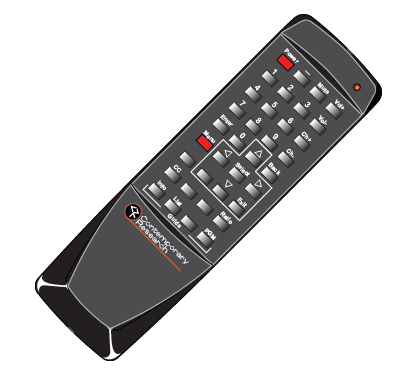

- Includes: HD2-RC IR Remote, switching power supply
-

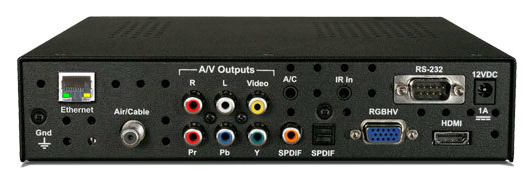

Always-active HDMI and composite video, as well as stereo, and digital coax and TOSlink optical audio ports
-
VGA or Component outputs switchable from front-panel settings or RS-232 control
-

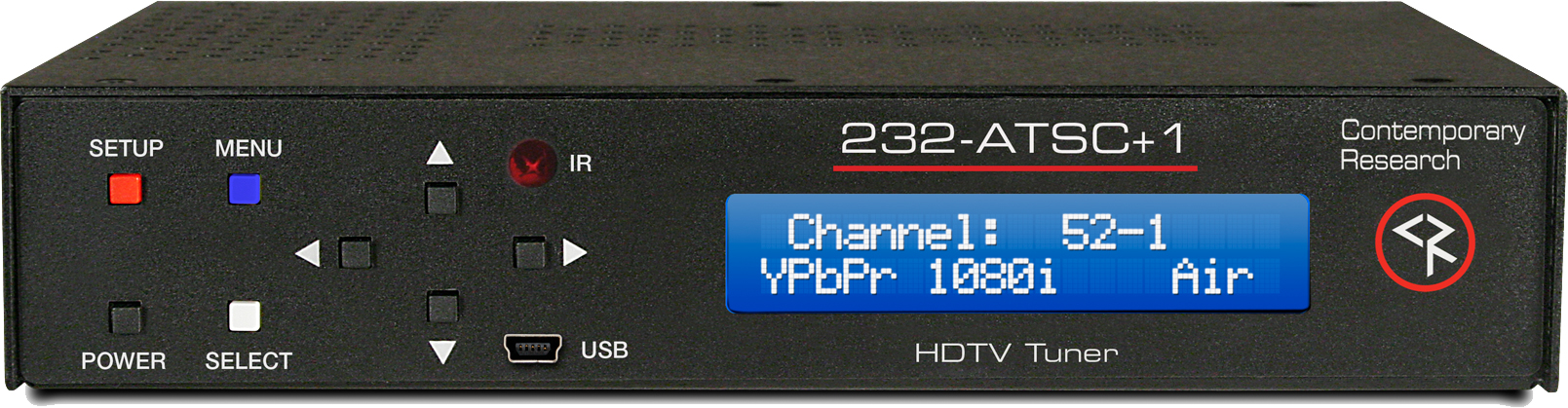

Front-panel text and onscreen menus for tuner setup
-
Web page for remote setup and control
-
Supports dual Air/Cable tuning with optional RF switch
-
Analog and digital closed captioning
-
Internal scaler displays all channels at selected resolution
-
Rack-mountable two across in 1RU
-
Full ASCII 2-way RS-232 commands, AMX, Crestron, and RTI modules available, discrete IR commands
-
RS-232 can be daisy-chained to control up to 9 tuners from a single RS-232 port, or control any number of tuners via IP
-
Field updatable for control and HD processing firmware via USB
-
Meets RoHS and California energy-saving standards, fan cooled operation
- View Contemporary Research 232-ATSC+1 Specifications (PDF)
|
|
